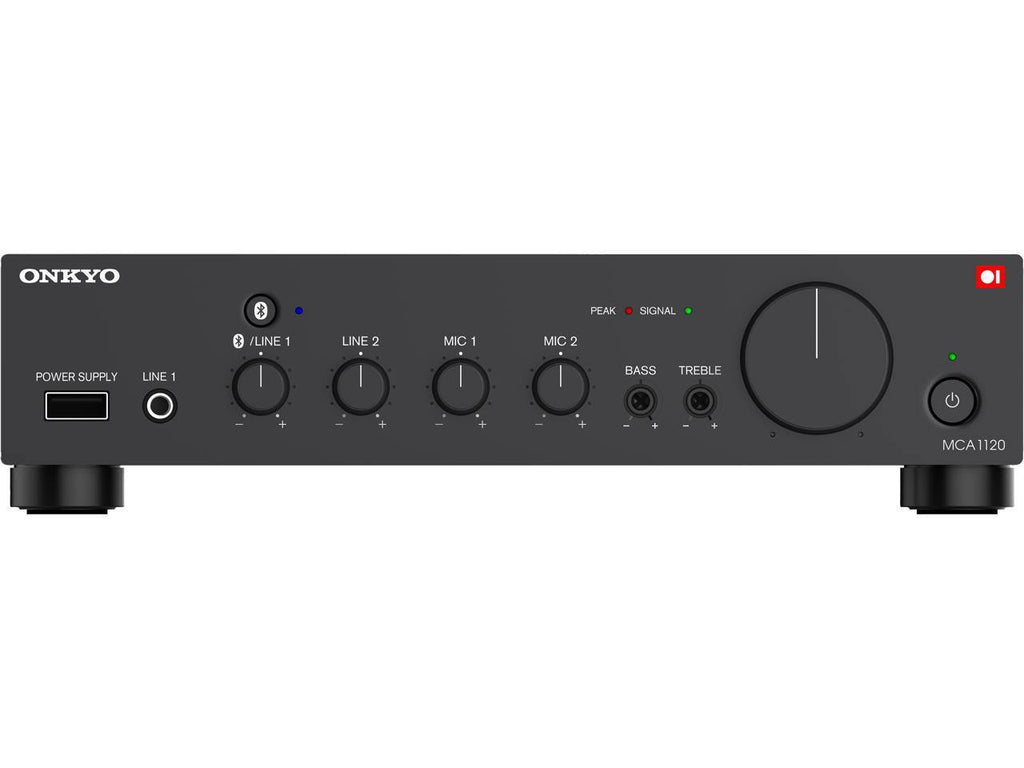

The Onkyo 120W Mono Mixing Amplifier features DSP, Bluetooth, and more, for commercial sound application. The amplifier includes Dynamic Loudness designed for background music, and for balanced sound at any volume level. Bi-directional RS232, IR, and external Remote Volume control allow for system integration.

Model # MCA1120

BENEFITS

• Preset EQ for loudspeakers and 12 Parametric EQ/HPF/LPF for further sound optimization
• Dynamic Loudness designed for background music, for balanced sound at any volume level
• Bi-directional RS232, IR and external Remote Volume control for system integration
• Auto Power on by sensing audio signal on the selected input
• One or two amps can fit into 1RU space with optional rack mount kit
• Left-to-Right ventilation allows direct stacking for space saving
• Smooth automatic transition between music and paging with Auto Mic ducker
• Bluetooth and USB power supply for portable player

SPECIFICATIONS

• Power: 120W x 1 (4 Ohms drive, 2 Ohms drive, 70/100V), 60W x 1 (8Ohms drive)
• THD: 0.5% or less
• Frequency Response: 20Hz - 20kHz (+1dB, -6dB)

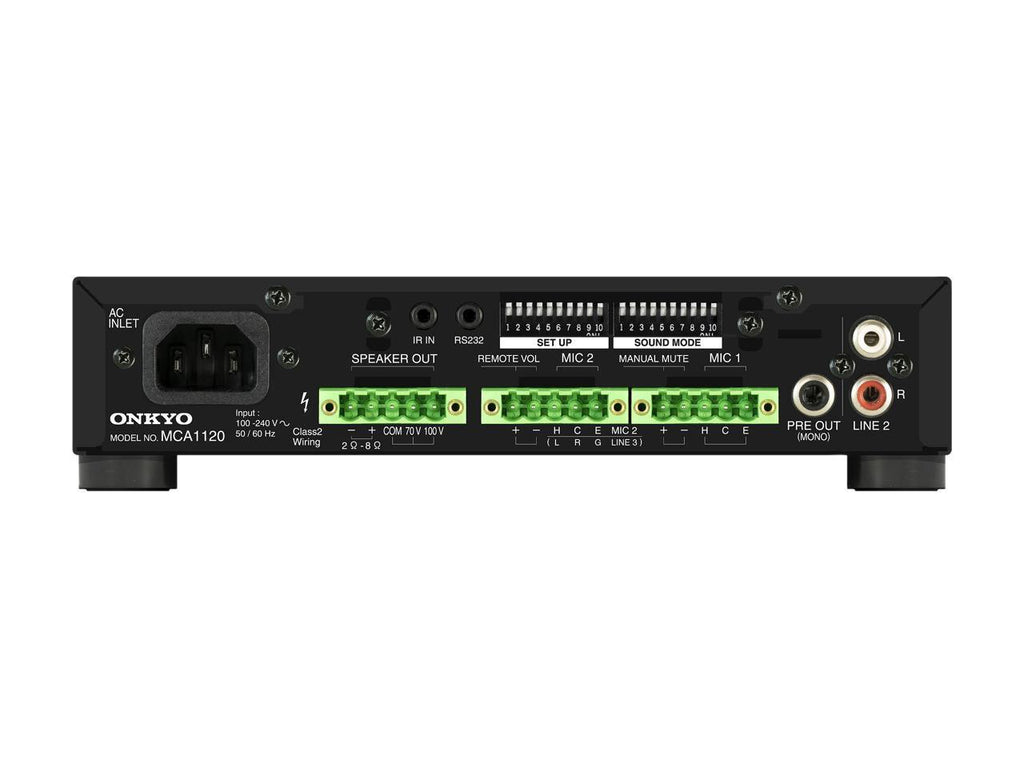

• Input Terminals: LINE1: Bluetooth or Stereo Mini (Front), LINE2: RCA (Stereo, Rear), LINE3: Euroblock (Stereo, Rear) *MIC2 mutually exclusive, MIC1: Euroblock (Rear), MIC2: Euroblock (Rear) *LINE3 mutually exclusive
• Output Terminals: PRE OUT (Rear: RCA, mono)
• Input Impedance: LINE1: 43k-ohms, LINE2:14k-oohms, MIC: 2k-ohms
• Input Sensitivity: LINE1: -14dBV, LINE2: -10dBV, MIC: -50dBV
• Bluetooth Range: Maximum communication range approx. 10m
• USB Terminal: For power supply (Front, 5V/2.1A)
• Operating Temperature: 42 degrees Fahrenheit to 104 degrees Fahrenheit
• Power Supply: AC100-240V (50Hz/60Hz)
• Power Consumption: 215W (Max) 10W (idle) 0.4W (standby)
• Dimensions/Weight: 8.5"(W) x 13.0"(D) x 2.2"(H) (including feet)/7.9 lbs.
